JDK, JRE, and JVM

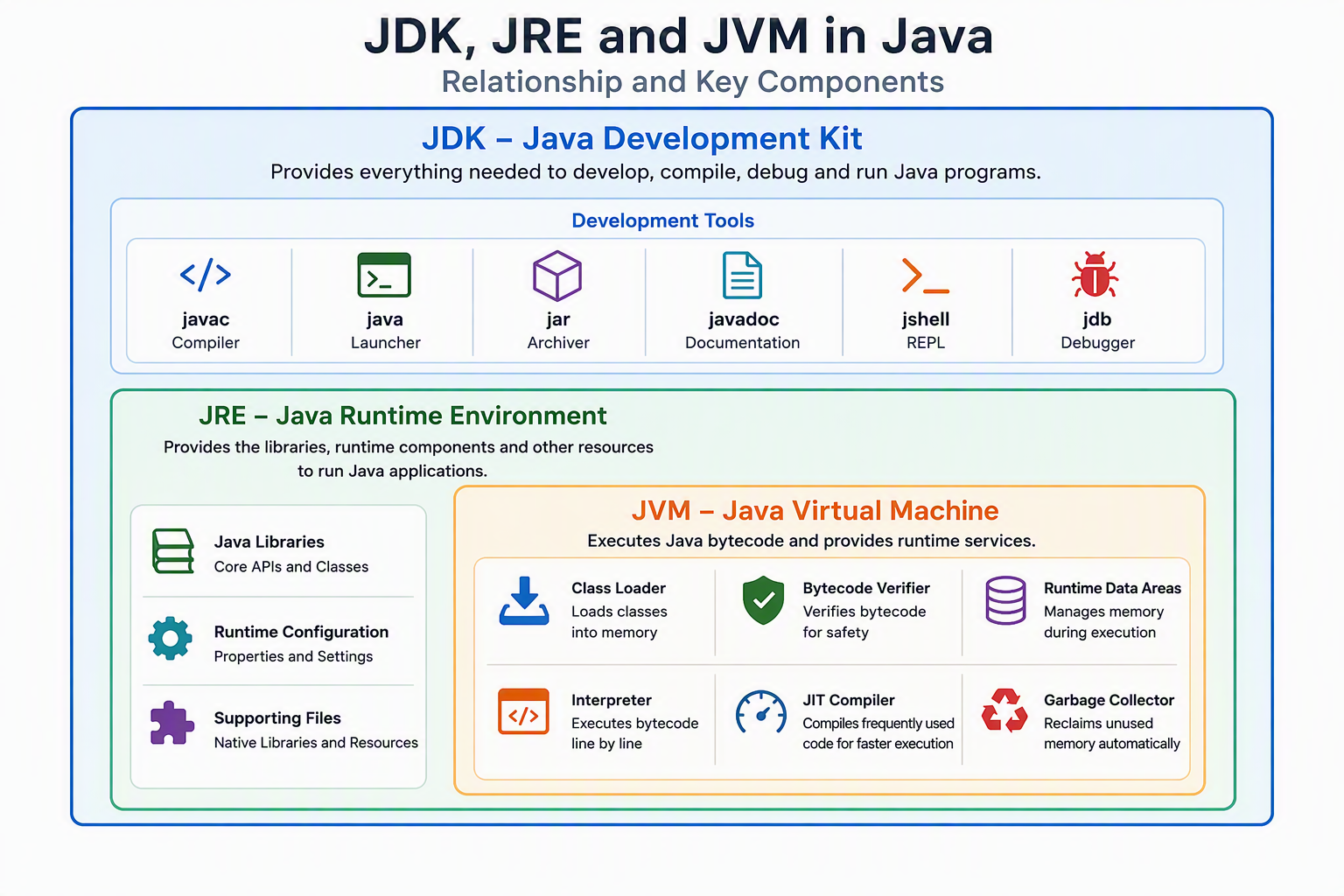

• Java Development Kit (JDK) provides the environment to develop and execute (run) Java programs.

• JDK contains two parts:

  1. Utilities like javac, debugger, jar — used to compile source code (.java files) into bytecode (.class files) and debug programs.

  2. The JRE, which contains utilities like java to run/execute the bytecode.

• You need JDK if you want to write and compile your own programs. For only running Java programs, JRE is sufficient.

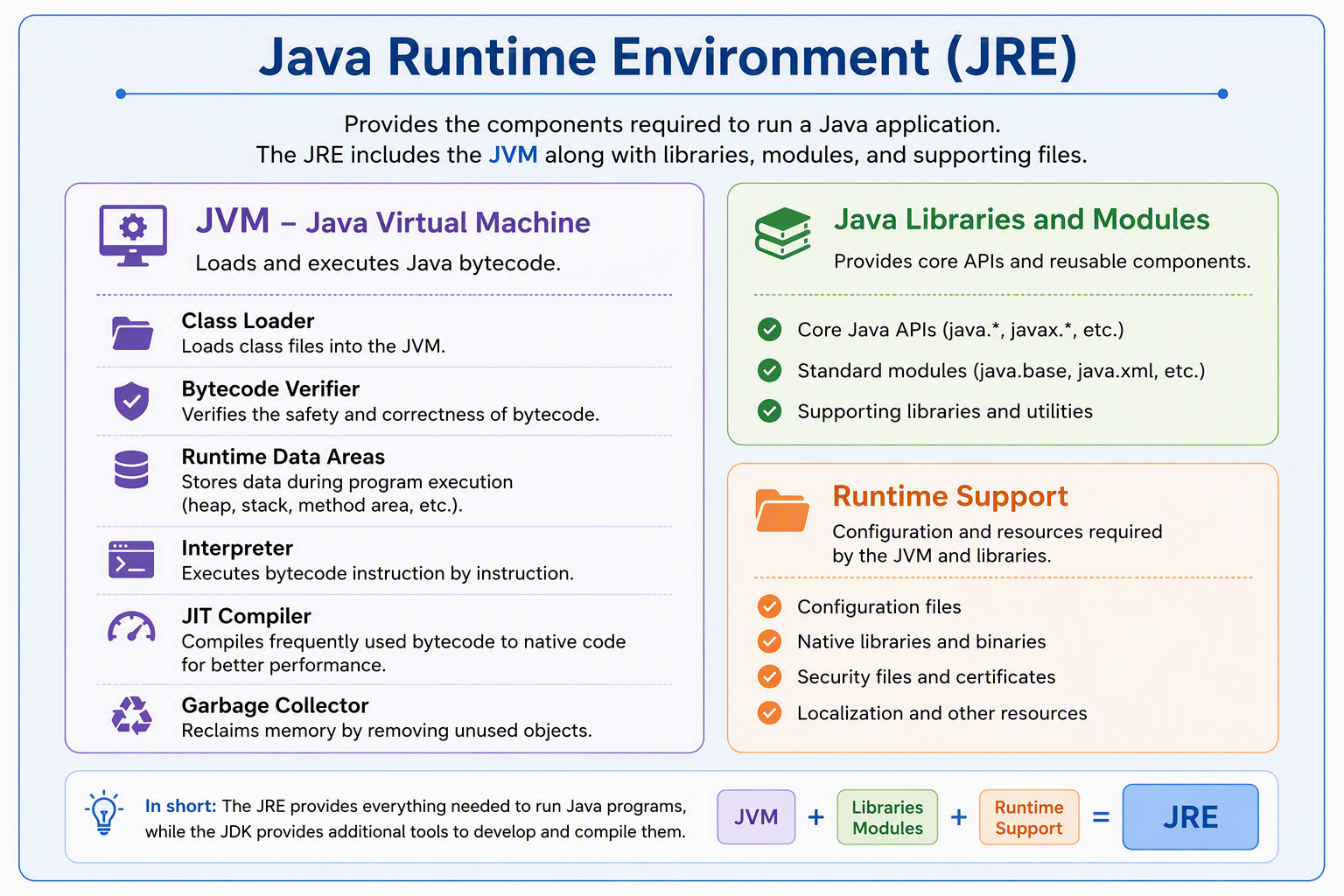

• The Java Runtime Environment (JRE) provides the libraries, the Java Virtual Machine (JVM), and other components to run (not develop) Java applets and applications.

• A Java Virtual Machine (JVM) is an abstract computing machine that enables a computer to run a Java program.

• JVMs are available for many hardware and software platforms (i.e., JVM is platform-dependent).





• JVM (Java Virtual Machine) is software — a specification that provides the runtime environment to execute Java bytecode. It does not physically exist.

  There are three notions of the JVM:

  1. Specification: A formal document describing what is required of a JVM implementation. Ensures all implementations are interoperable.

  2. Implementation: A computer program that meets the JVM specification.

  3. Instance: A running implementation in a process that executes Java bytecode.

---

Working of JVM

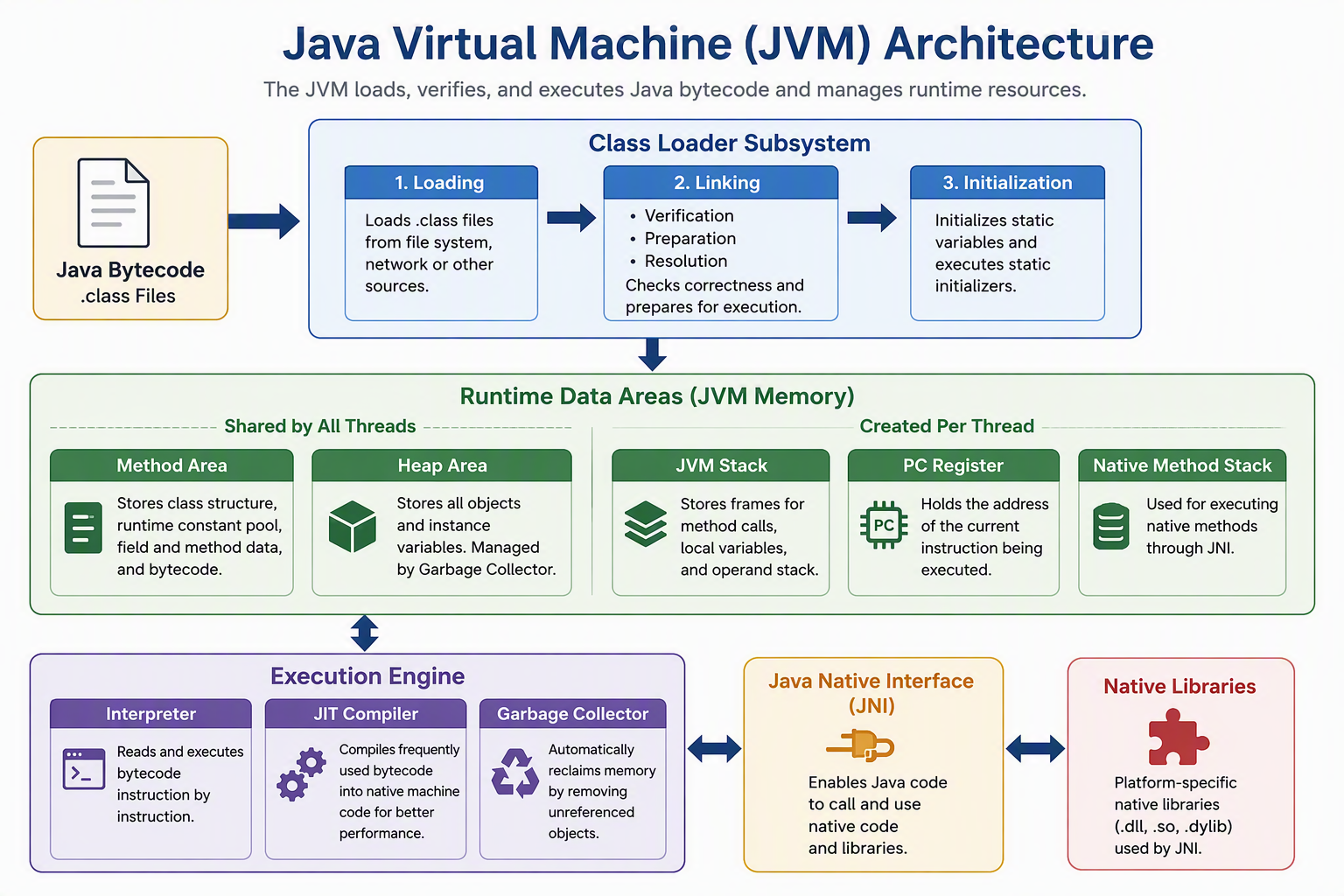

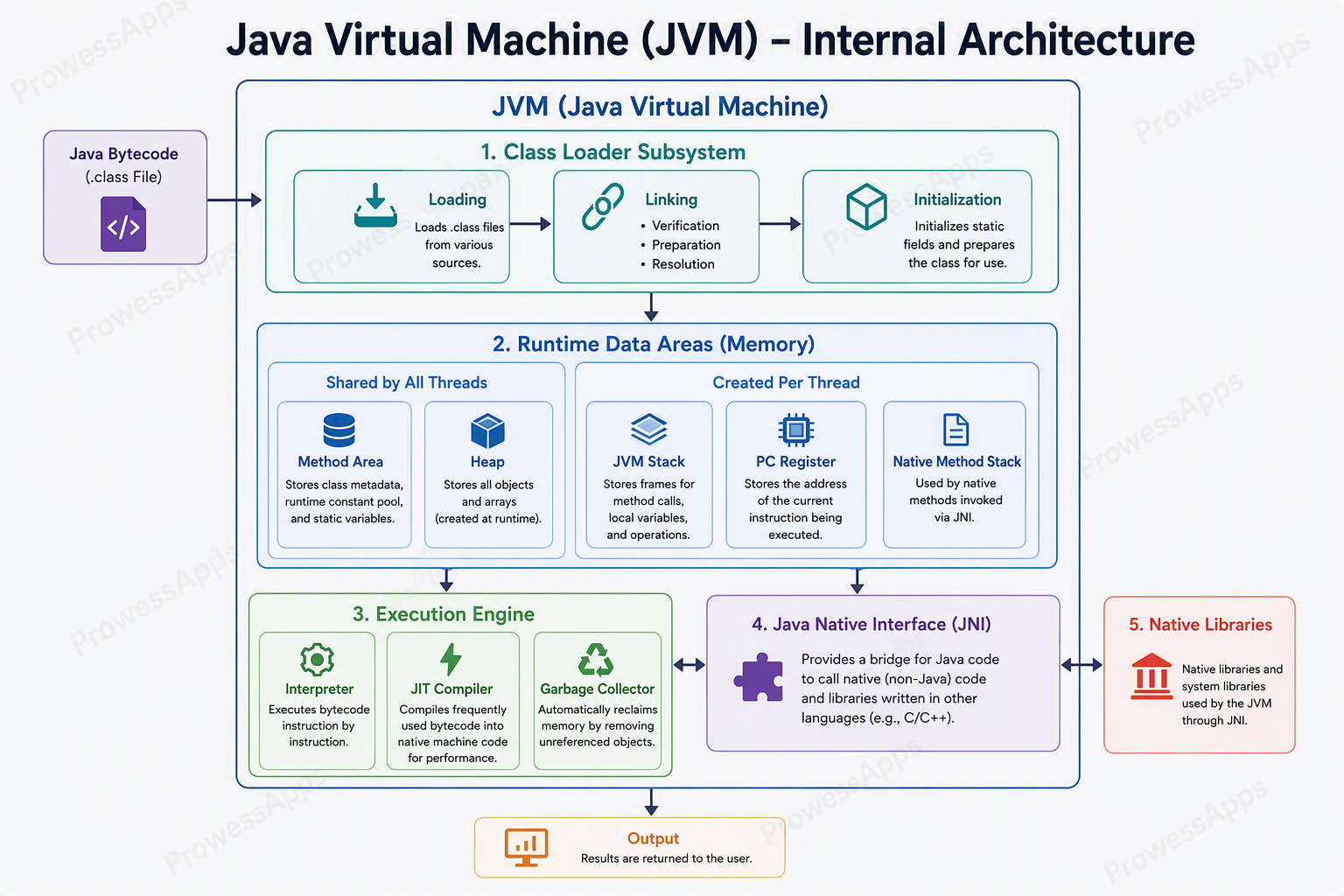

As shown in the JVM architecture diagram, JVM is divided into three main subsystems:

1. Class Loader Subsystem

2. Runtime Data Area

3. Execution Engine

---

1. Class Loader Subsystem

The Class Loader loads class files and performs three basic activities in strict order:

1.1. Loading: Finds and imports the binary data for a type.

1.2. Linking: Performs verification, preparation, and (optionally) resolution.

• Verification: Ensures correctness of the imported type.
• Preparation: Allocates memory for class variables and initializes them with default values.
• Resolution: Transforms symbolic references into direct references.

1.3. Initialization: Invokes Java code to initialize class variables to their proper starting values.

There are two types of class loaders: bootstrap class loader and user-defined class loader. Every JVM must have a bootstrap class loader for trusted classes.

---

2. Runtime Data Area

The Runtime Data Area is divided into 5 major components:

2.1 Method Area – Stores class-level data (including static variables). Shared across JVM, one per JVM.

2.2 Heap Area – Stores objects, instance variables, and arrays. One per JVM. Not thread-safe since it’s shared.

2.3 Stack Area – Each thread gets its own runtime stack. Each method call creates a stack frame containing local variables.

1. 2.3.1 Local Variable Array: Stores method’s local variables.
2. 2.3.2 Operand Stack: Workspace for intermediate operations.
3. 2.3.3 Frame Data: Stores method symbols and exception handling info.

2.4 PC Registers: Each thread has its own PC register holding the address of the current instruction.

2.5 Native Method Stacks: Each thread gets its own stack for native method information.

---

3. Execution Engine

The Execution Engine executes bytecode assigned to the Runtime Data Area. It contains:

1. A Virtual Processor

2. Interpreter: Reads and executes bytecode instructions.

3. JIT Compiler: Improves performance by compiling frequently used bytecode into native code for faster execution.
